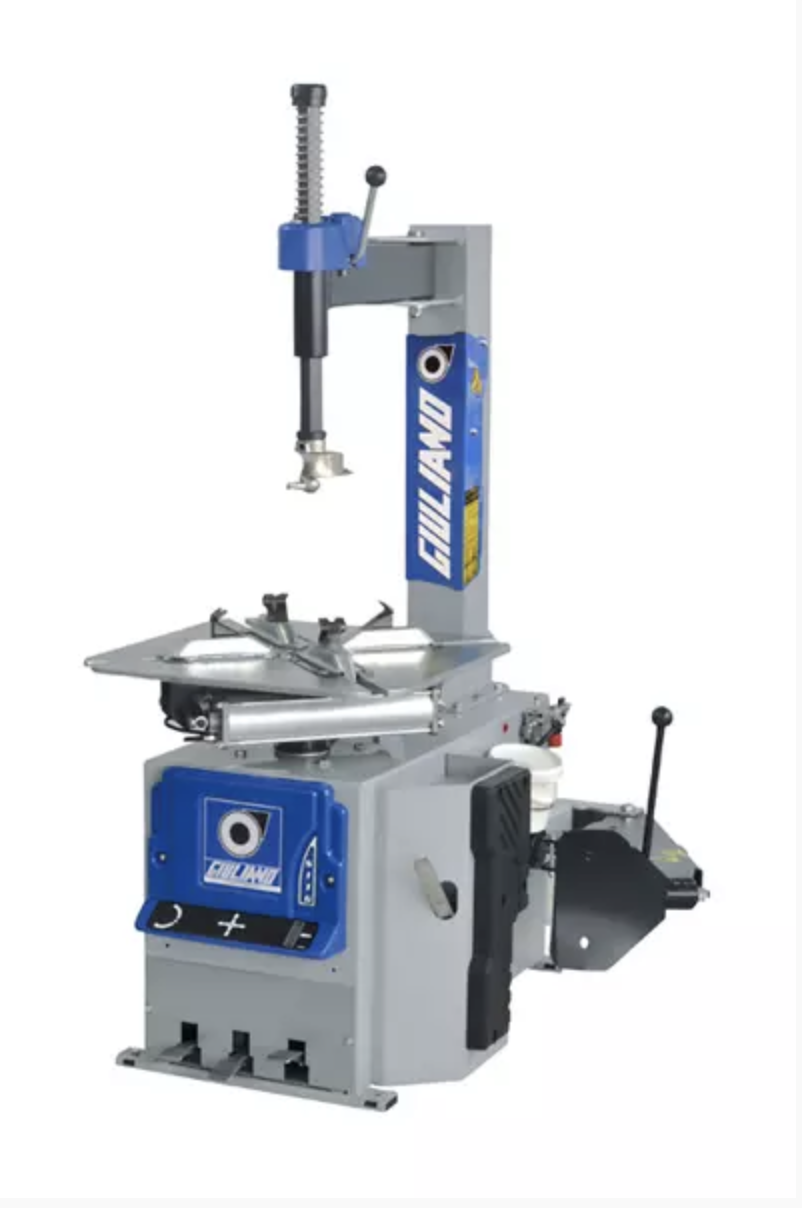

Giuliano S116

Standard Features –

Rim clamping from outside 10 – 22″*
Rim clamping from inside 12 – 24″*
Max. tyre diameter 1100 mm (43″)
Max tyre width 330 mm (13″)
Bead breaker cylinder force at 10 Bar – 30800N
Operating pressure 10 bar (145 Psi)
Power supply 400 V-3 ph / 220V- 1 ph
Motor power 0,55 kW (3ph)
Rotation speed 7 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 190 kg
Max. overall dimensions 1170 x 980 x1760 mm

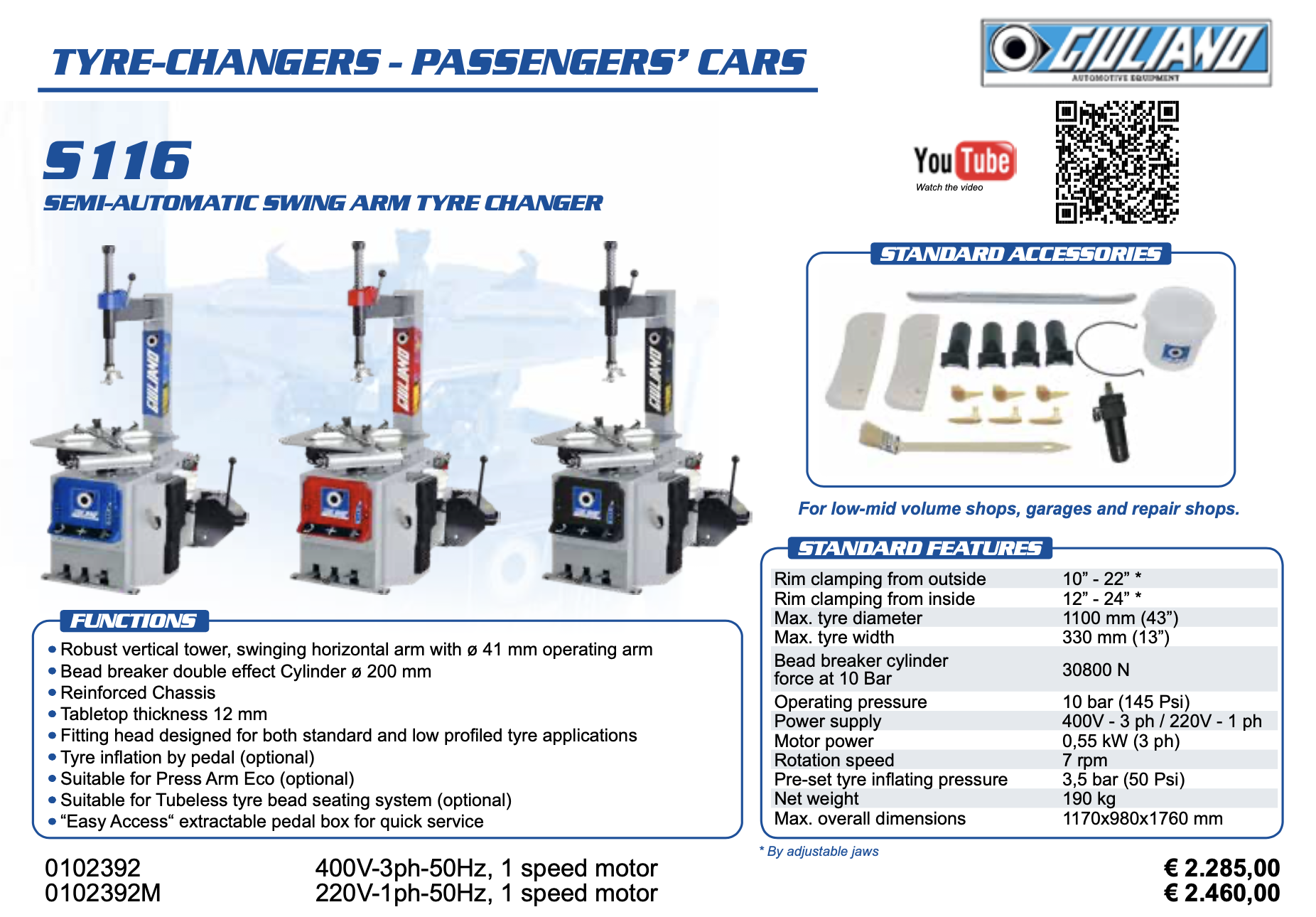

For more information please refer to the brochure here –
