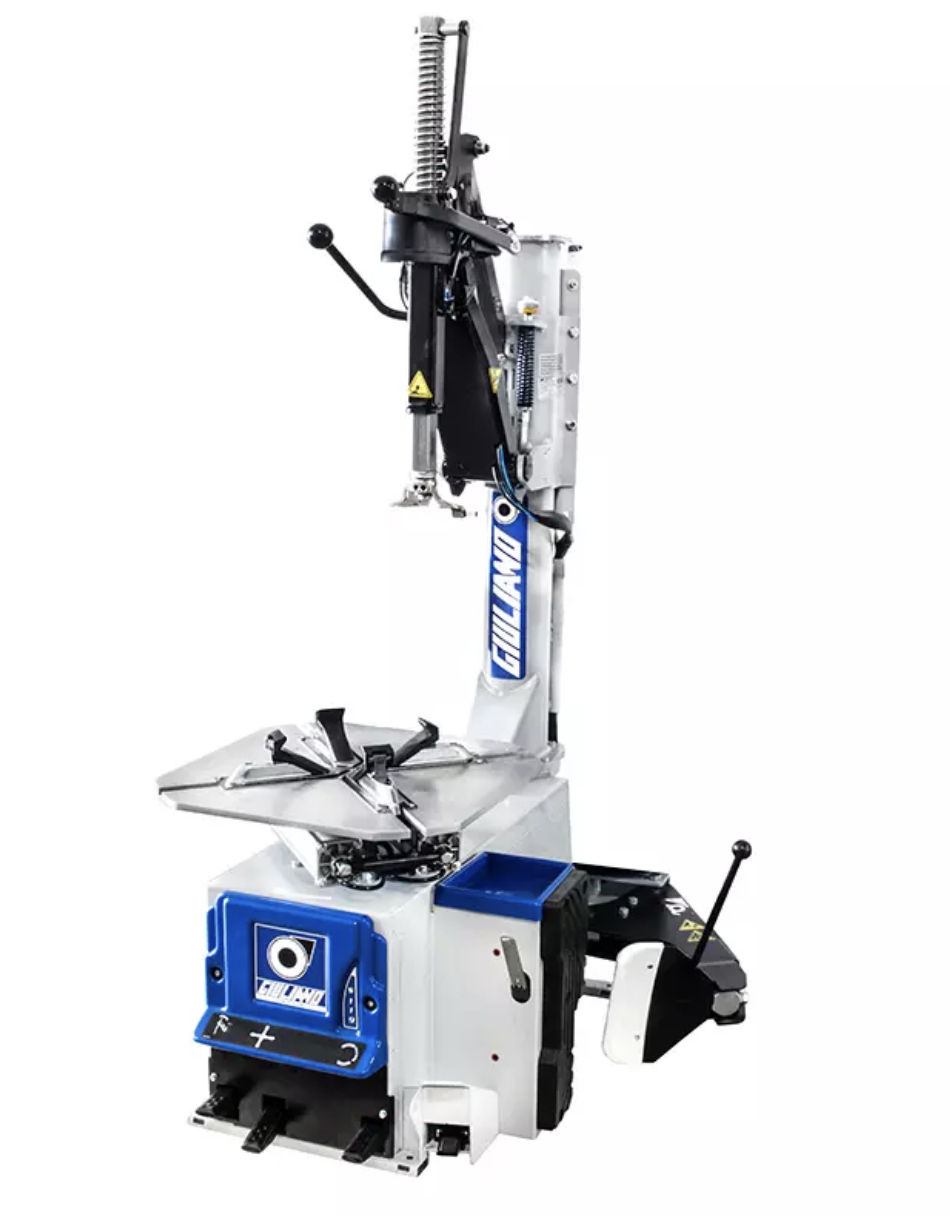

Giuliano S119

Standard Features –

Rim clamping from outside 10″ – 24″
Rim clamping from inside 12″ – 26″
Max. tyre diameter 1100 mm (43″)
Max. tyre width 415 mm (16″)
Bead breaker cylinder force at 10 Bar – 30800 N
Operating pressure 10 Bar (145 Psi)
Power supply 400V-3ph-2speed / 200V-1ph / 220V-1ph-2speed
Motor power 0,8 / 1,1 kW (3 ph)
Rotation speed 7-14 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 316 kg
Max. overall dimensions 1390x1310x2170 mm

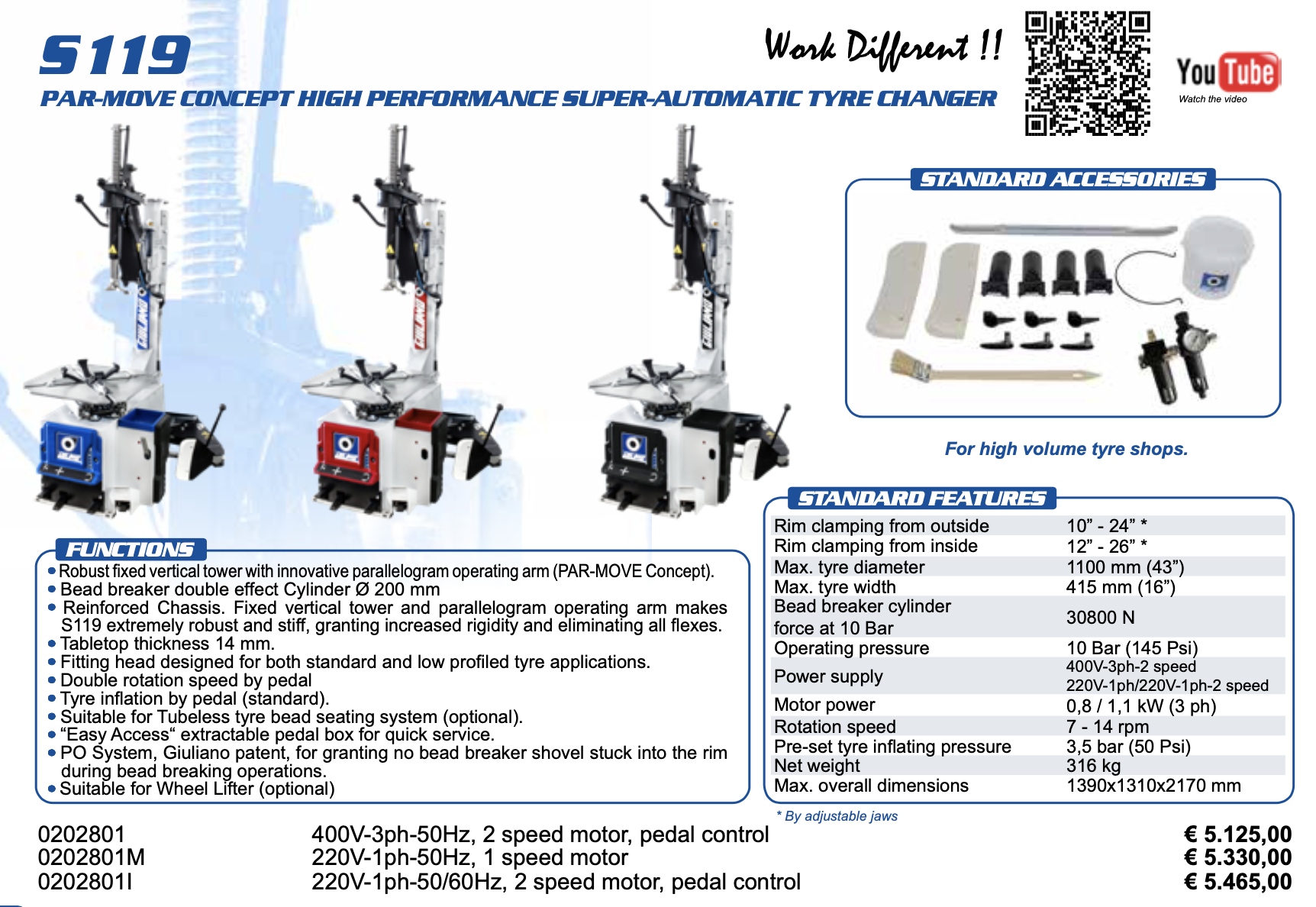

For more information please refer to the brochure here –
