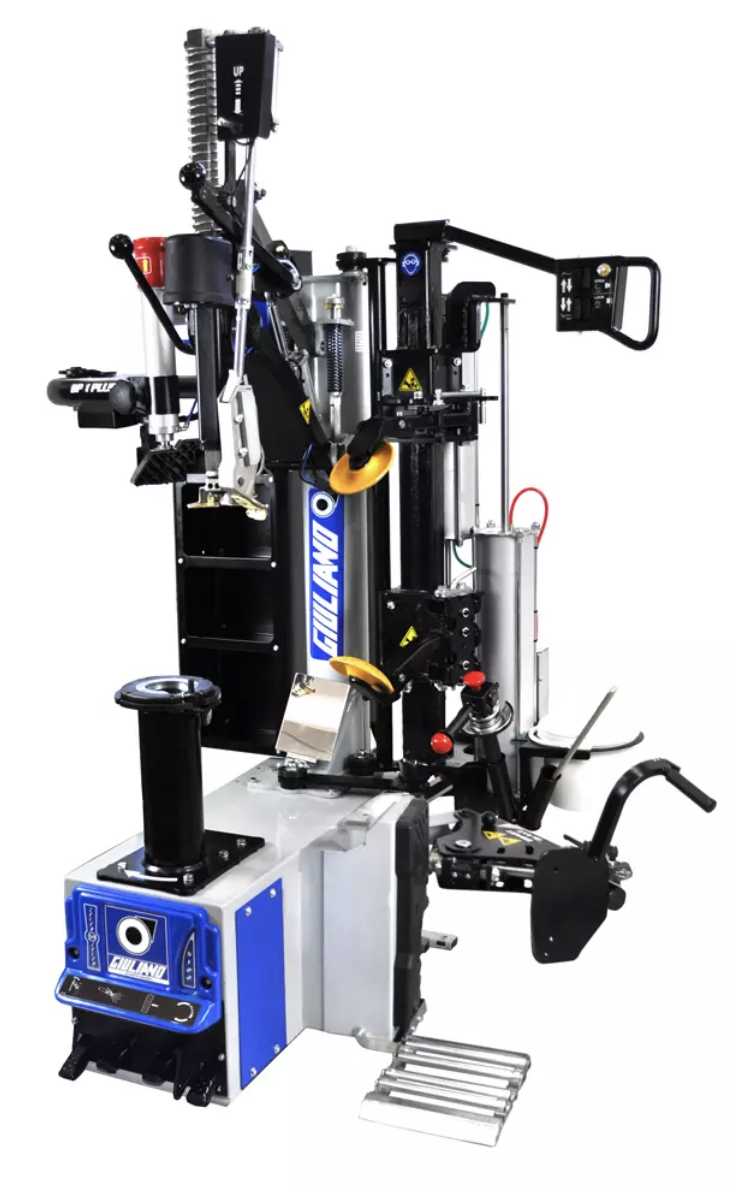

Giuliano S122

Standard Features –

Rim clamping range 12″ – 30″
Max. tyre diameter 1200 mm (47″)
Max. tyre width 406 mm (16″)
Bead breaker cylinder force at 10 Bar – 11700 N
Max. wheel weight 80 Kg
Operating pressure 8 – 10 bar (116-145 Psi)
Power supply 220V – 1ph
Motor power 0,75 kW / 2 speed
Rotation speed 7 – 16 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 445 Kg
Dimensions (WxDxH) 1760 x 1280 x 1770-2200 mm

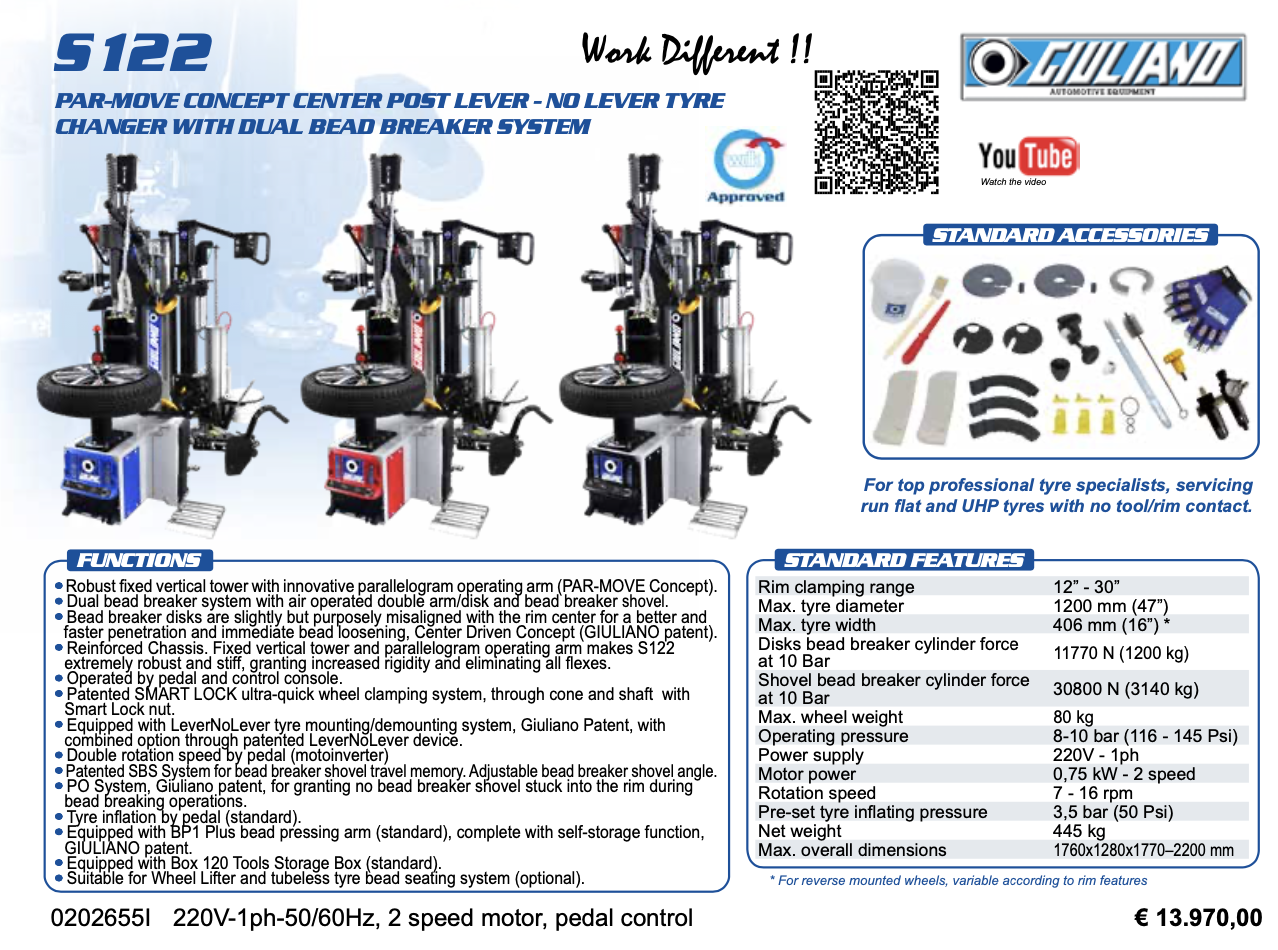

For more information please refer to the brochure here –
