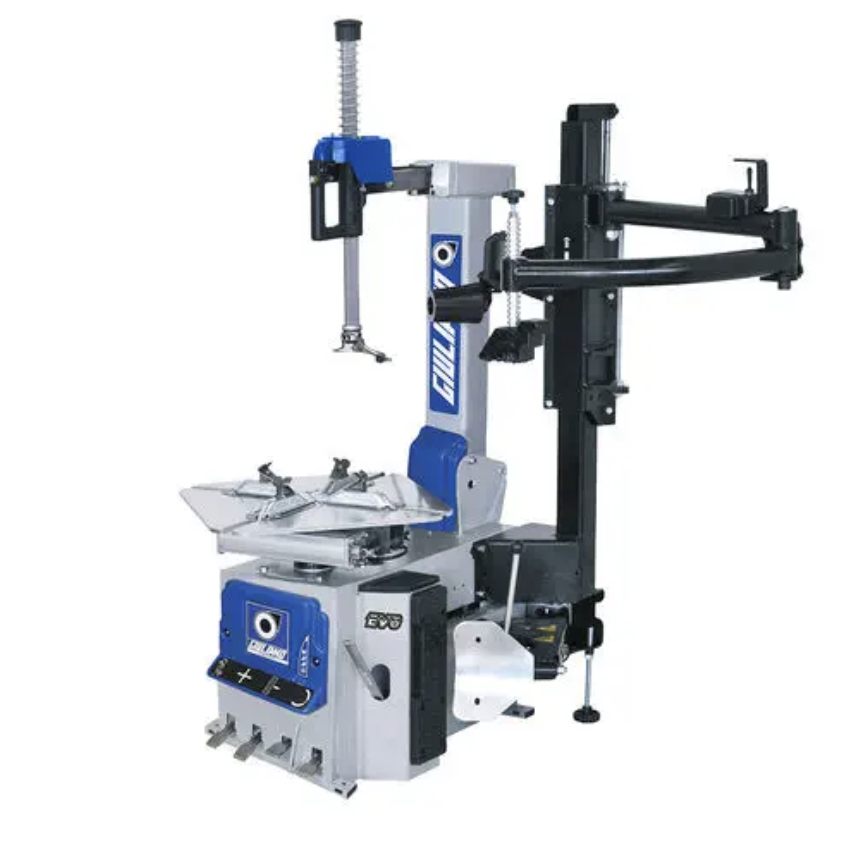

Giuliano S225 EVO

Standard Features –

Rim clamping range from outside 10″ – 22″
Rim clamping range from inside 12″ – 24″
Max. tyre diameter 1010 mm (39″)
Max. tyre width 390 mm (15″)
Bead breaker cylinder force at 10 Bar – 30800 N
Operating pressure 10 bar (145 Psi)
Power supply 400 – 3Ph / 220V – 1Ph
Motor power 0,55 kW (3ph)
Rotating speed 7 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 310 Kg
Max overall dimensions 1420 x 1740 x 2010 mm

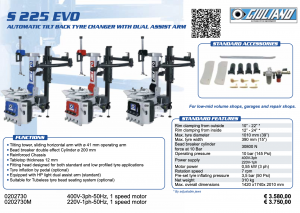

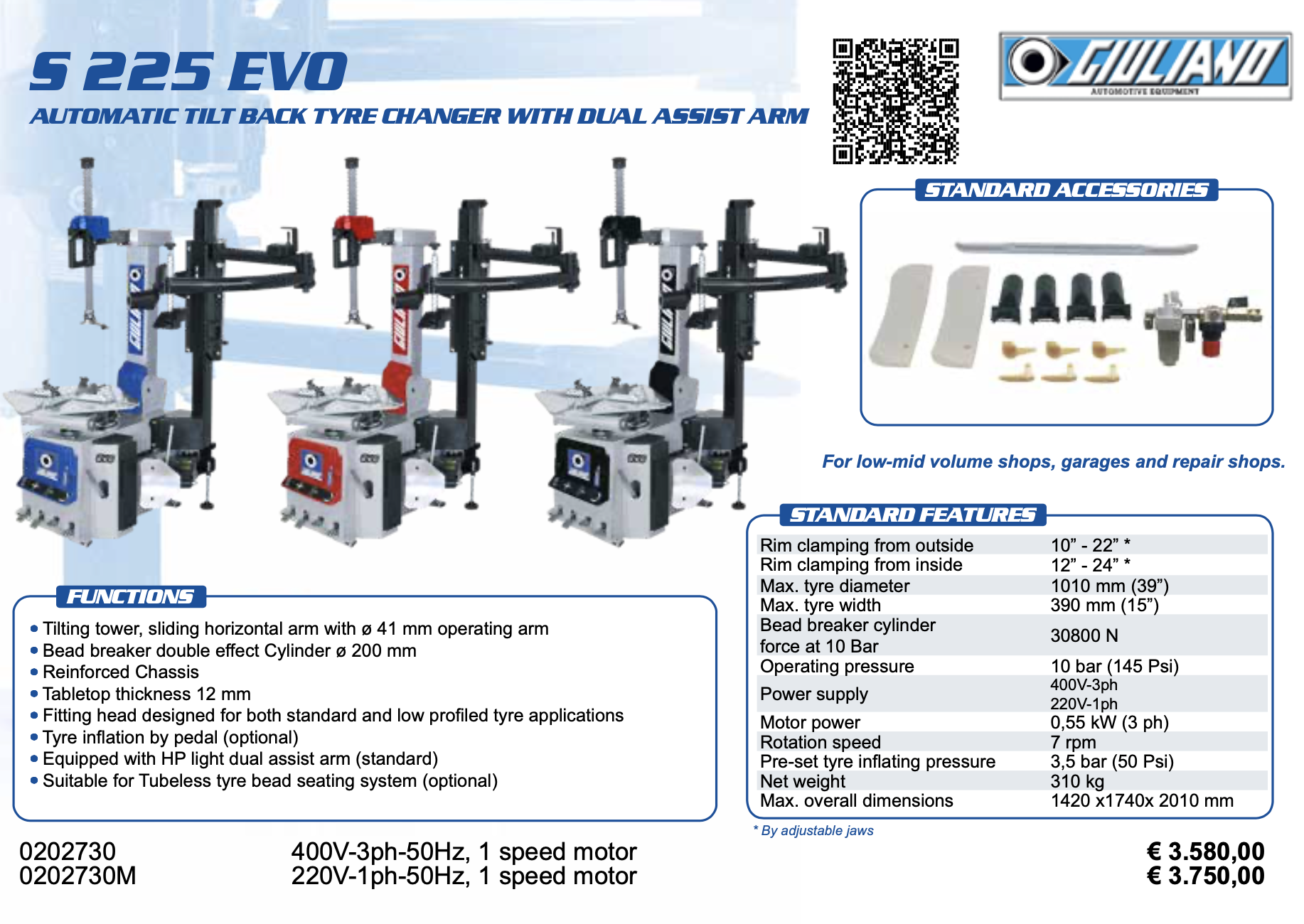

For more information please refer to the brochure here –
