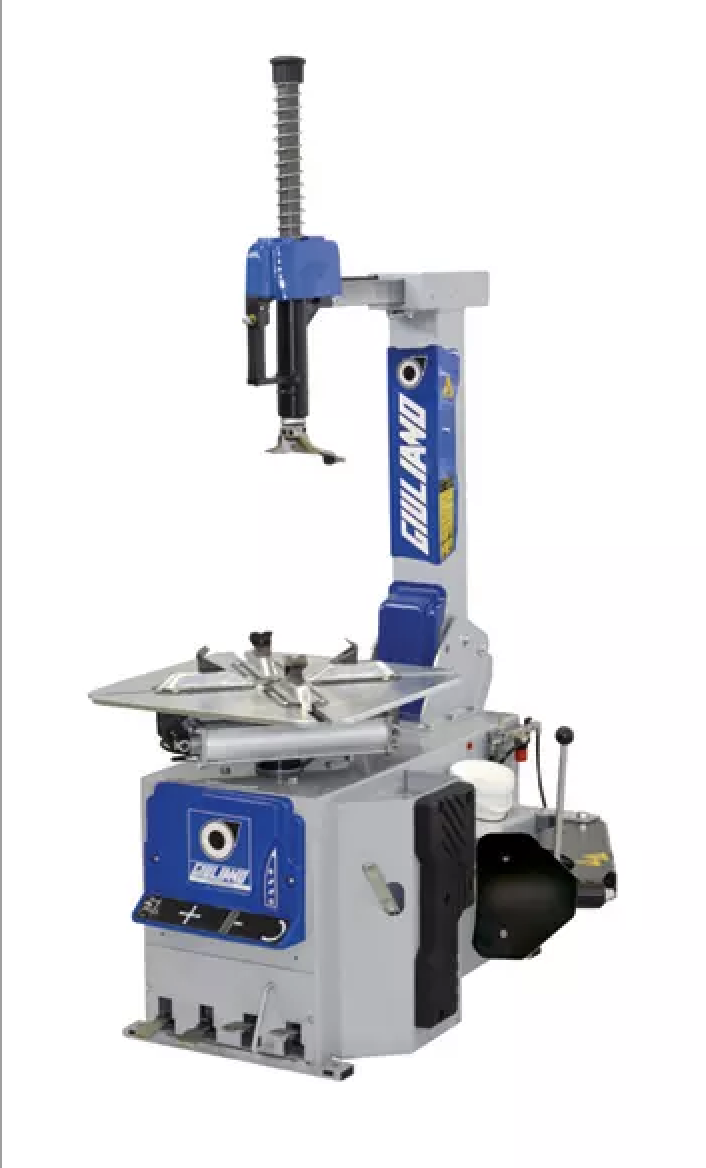

Giuliano S226

Standard Features –

Rim clamping range from outside 10″ – 22″
Rim clamping from inside 12″ – 24″
Max. tyre diameter 1100 mm (43″)
Max. tyre width 390 mm (15″)
Bead breaker cylinder 30800 N
Operating pressure 10 bar (145 Psi)
Power supply 400V-3ph/400V-3ph-2 speed / 220V-1ph/220V-1ph-2speed
Motor power 0,55 kW (3ph)
Rotating speed 7 rpm
Pre-set tyre inflating pressure 3,5 bar (50 Psi)
Net weight 225 Kg
Max overall dimensions 1170 x 1820 x 1910 mm

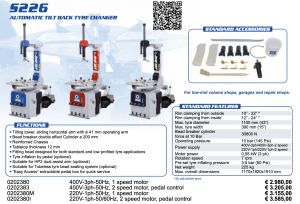

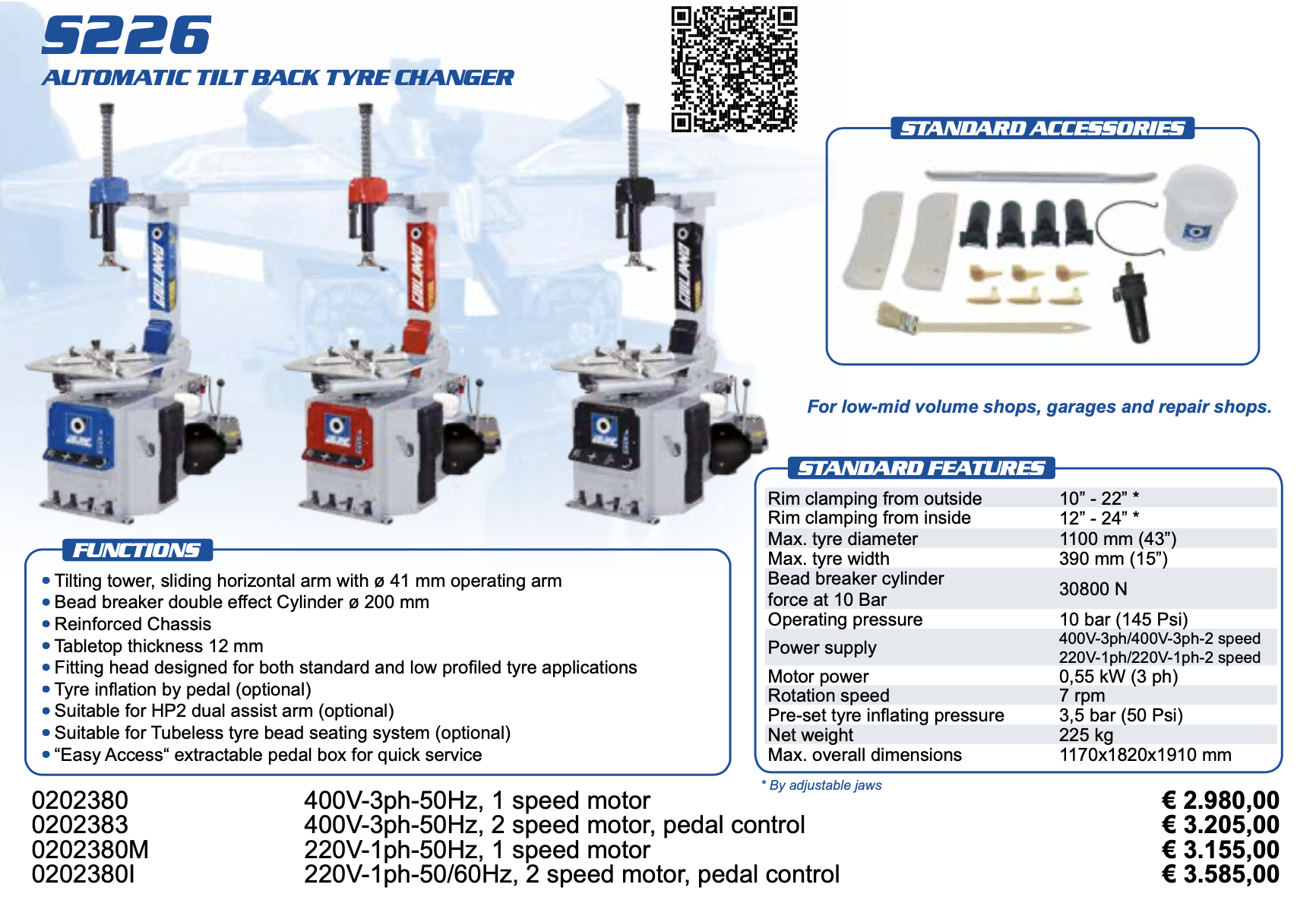

For more information please refer to the brochure here –
