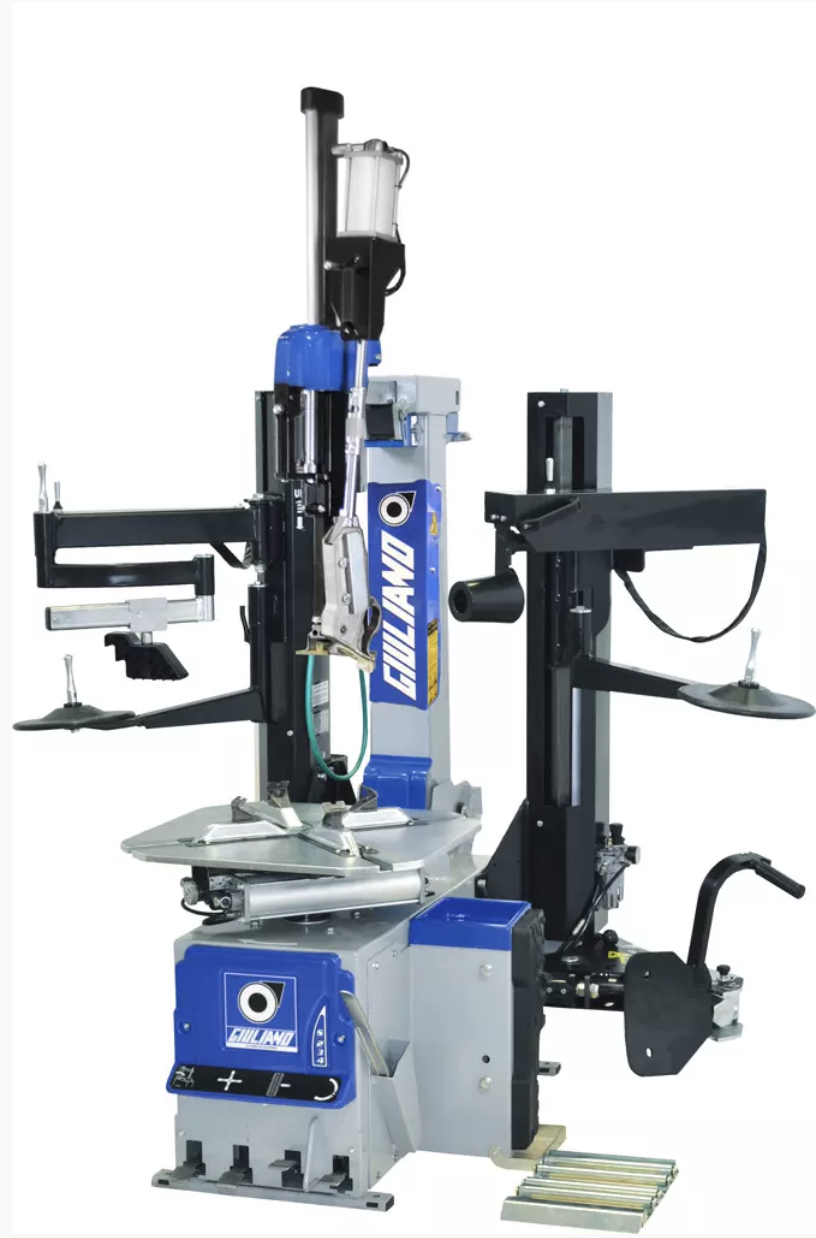

    Giuliano S234 L-N-L

    Standard Features –



    Rim clamping from outside 10″ – 26″
    Rim clamping from inside 12″ – 28″
    Max. tyre diameter 1120 mm (44″)
    Max. tyre width 406 mm (16″)
    Bead breaker cylinder force at 10 Bar – 30800 N
    Operating pressure 10 bar (145 Psi)
    Power supply 400V-3ph-2speed / 220V-1ph/220V-1ph-2speed
    Motor power 0,8 / 1,1 kW (3ph)
    Rotation speed 7-14 rpm
    Pre-set tyre inflating pressure 3,5 bar (50 Psi)
    Net weight 424 kg
    Max. overall dimensions 2000x1940x2190 mm

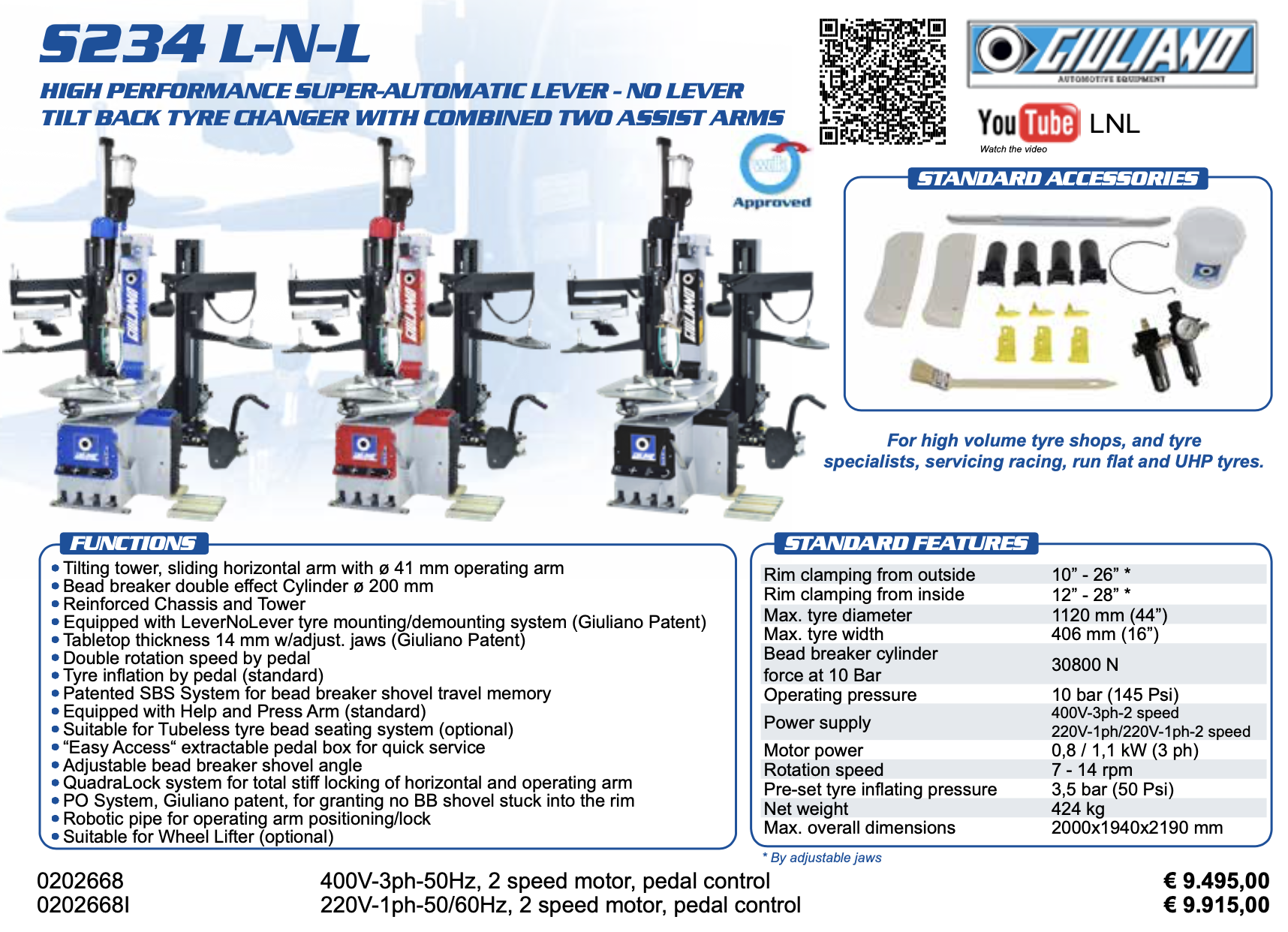

    For more information please refer to the brochure here –
