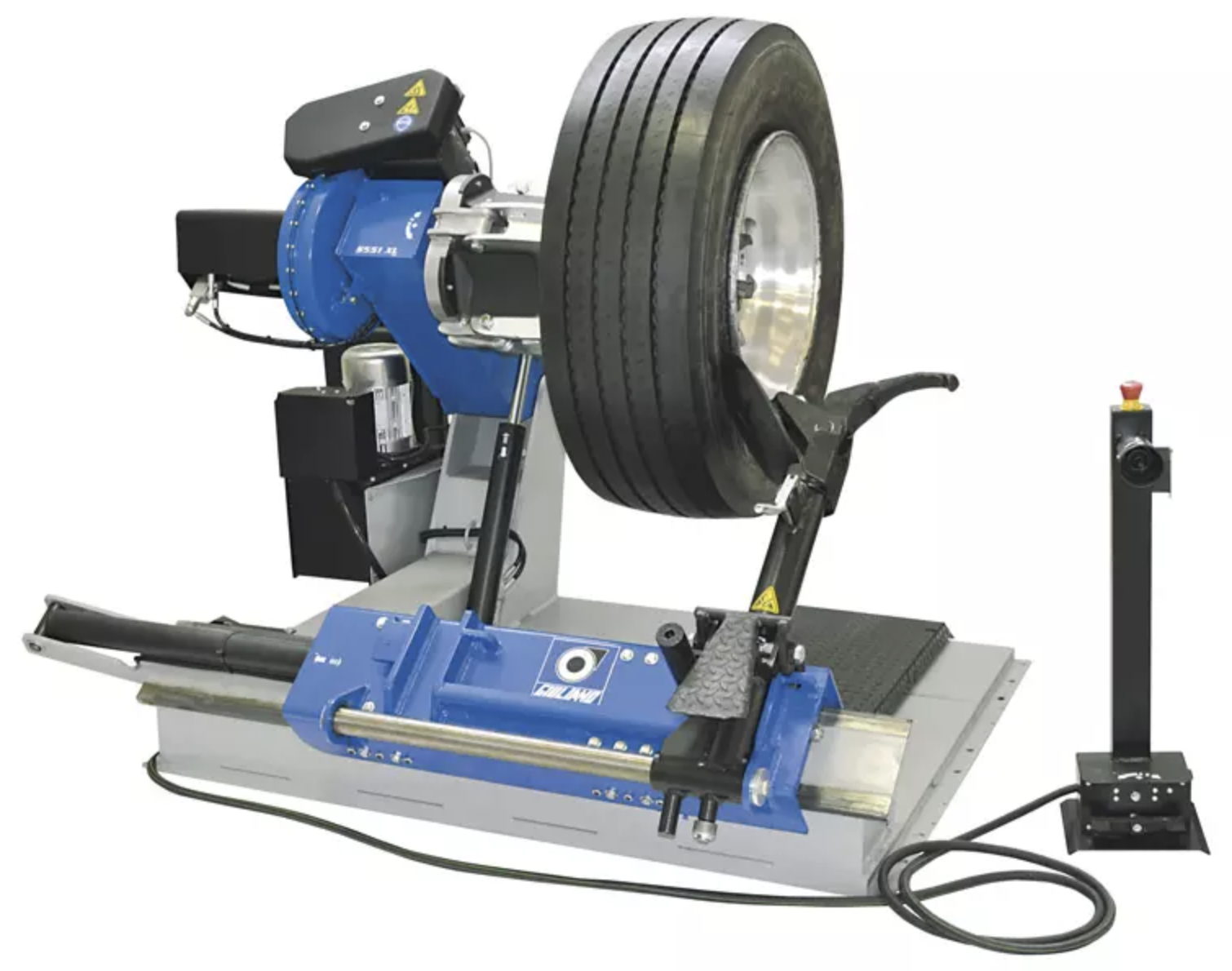

Giuliano S551 XL

Standard Features –

Rim clamping range without extensions 14″ – 46″
Rim clamping range with extensions (optional) 14″ – 58″
Max. tyre diameter 2300 mm (90,5″)
Max. tyre width 1100 mm (43″)
Bead breaker force 26900 N
Operating pressure 130 bar (1885 psi)
Power supply 400V – 3ph /2speed
Hydraulic pump motor power 1,1 kW
Clamping chuck motor power 1,3/1,8 kW
Net weight 830 kg
Max. tyre assembly weight 1500 kg
Max overall dimensions 2000÷2450×1640÷2390×880÷1840 mm

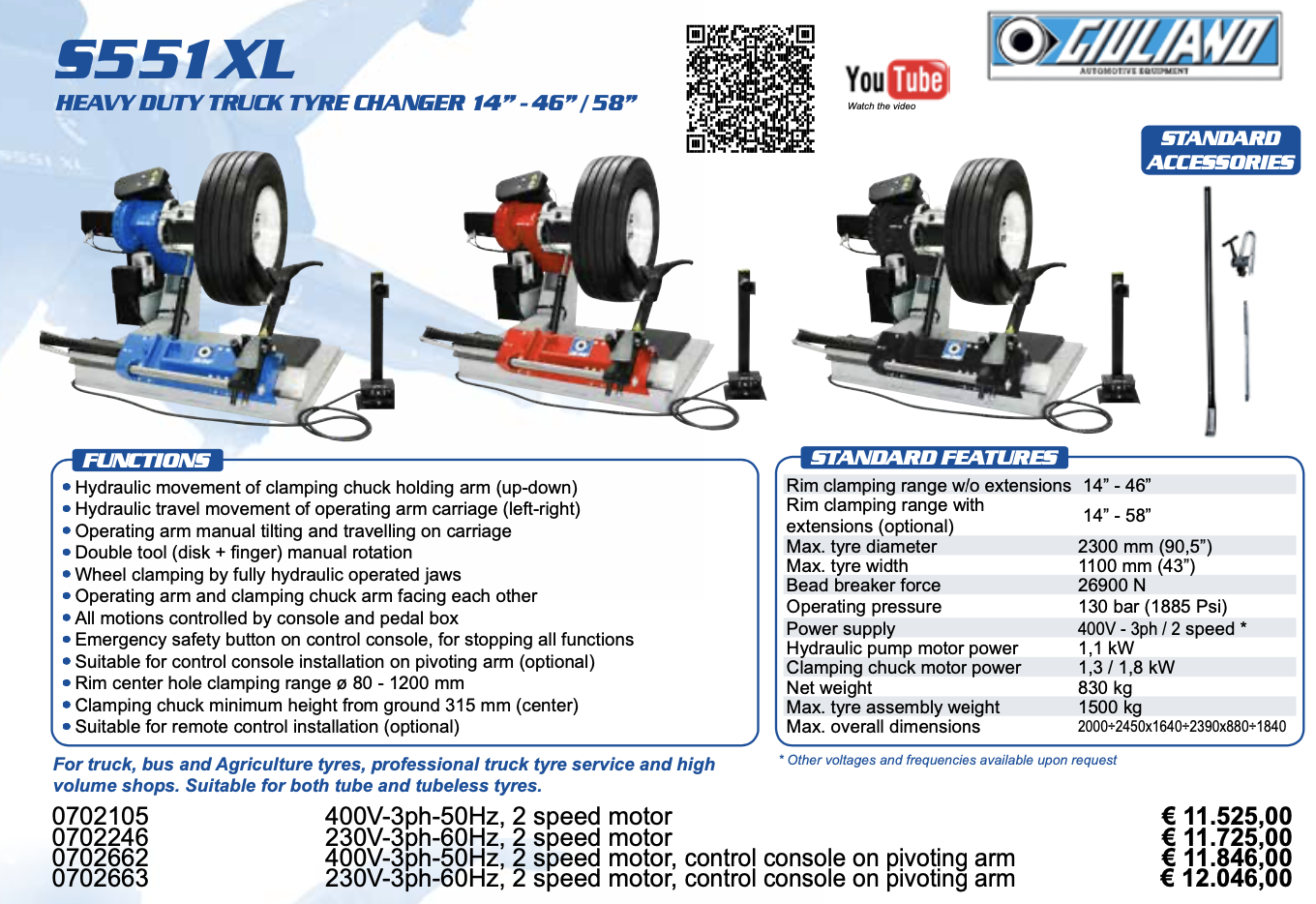

For more information please refer to the brochure here –
