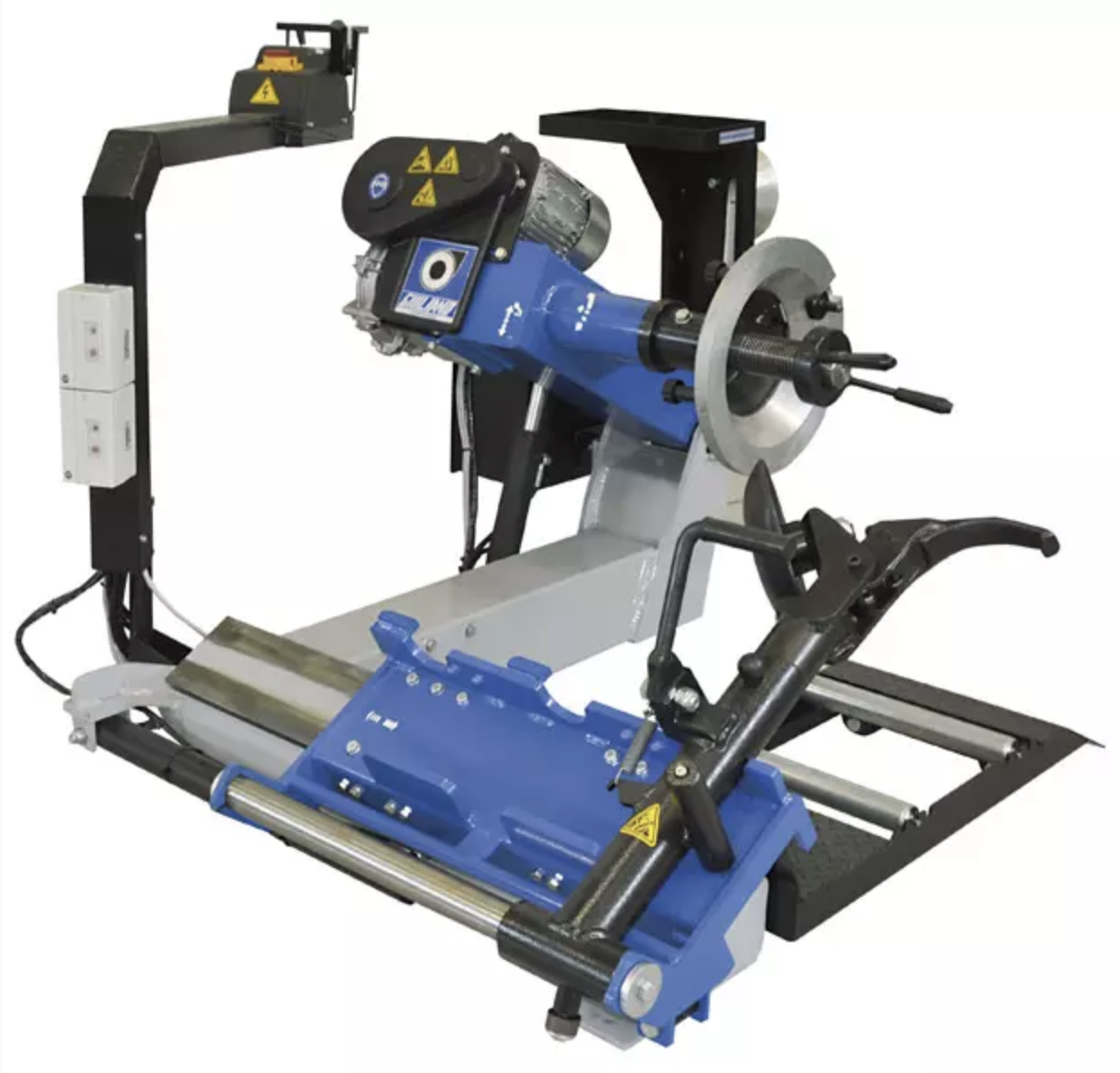

    Giuliano S554

    Standard Features –



    Rim clamping range 14″ – 26″
    Max. tyre diameter 1200 mm (47″)
    Max. tyre width 780 mm (30″)
    Bead breaker force 18300 N
    Operating pressure 130 bar (1885 psi)
    Power supply 400V / 230V – 3ph
    Hydraulic pump motor power 1,1 kW (3 ph)
    Clamping chuck motor power 1,1 kW (3ph)
    Net weight 400 kg
    Max. tyre assembly weight 1500 kg
    Max overall dimensions 1330÷1570x1500x1160 mm

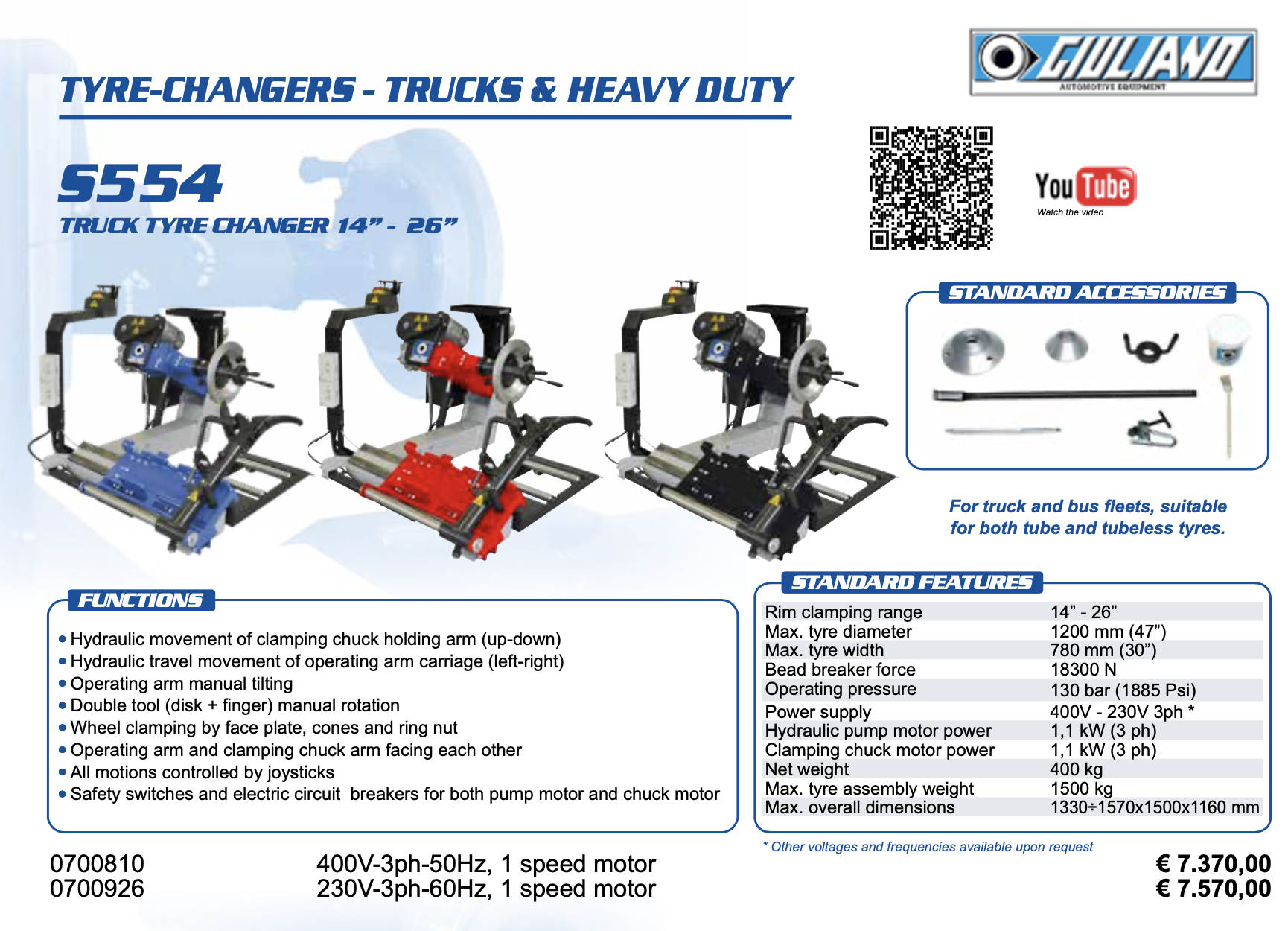

    For more information please refer to the brochure here –
