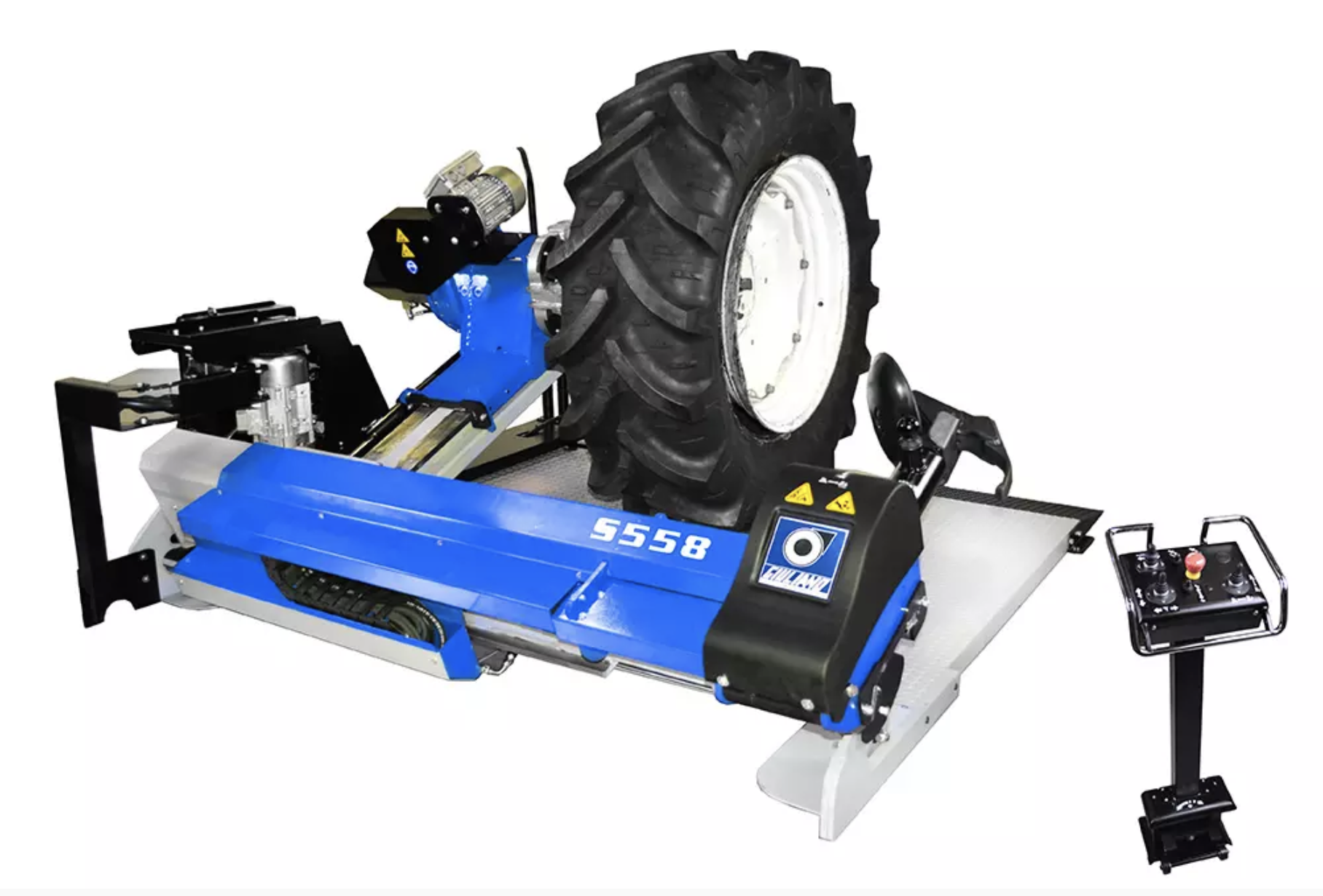

Giuliano S558

Standard Features –

Rim clamping range w/o extensions 12″ – 46″
Rim clamping range with extensions 12″ – 58″
Max. tyre diameter 2600 mm (102″)
Max. tyre width 1530 mm (60″)
Rim center hole minimum clamping diameter 80 mm
Clamping chuck minimum height from ground 365 mm
Max. tyre assembly weight 2000 kg
3 speed clamping chuck rotation 1 – 4 – 9 rpm
Chuck motor power 2,2 kW
Hydraulic pump motor power 3 kW
Hydraulic pressure 160 bar (2320 psi)
Electric power supply 3ph 400 V, 50/60 Hz-3 speed*
Bead breaker force 37600 N
Net weight 1370 Kg
Max. overall dimensions 2420+3150×2350÷2600×1030+1970

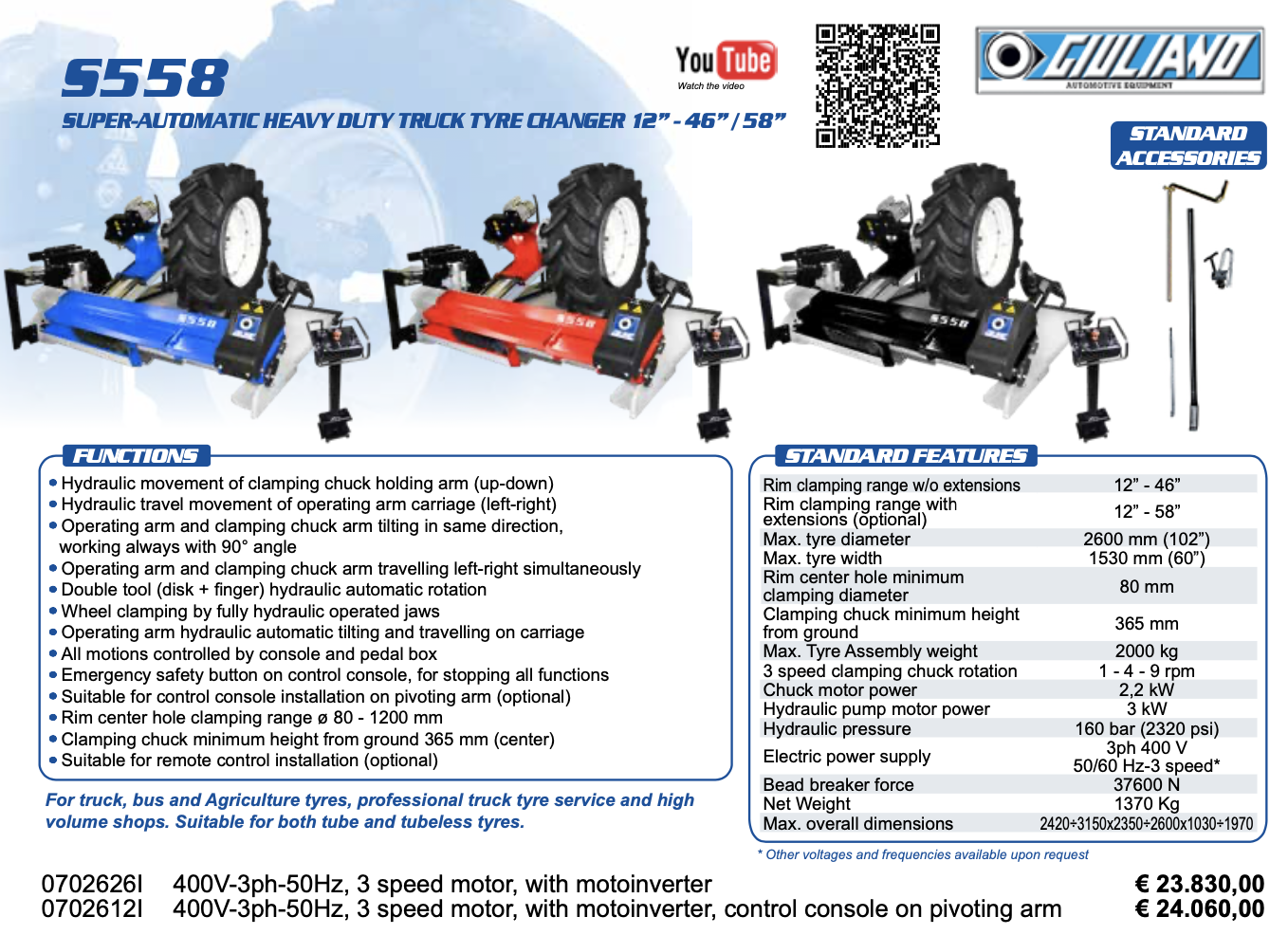

For more information please refer to the brochure here –
