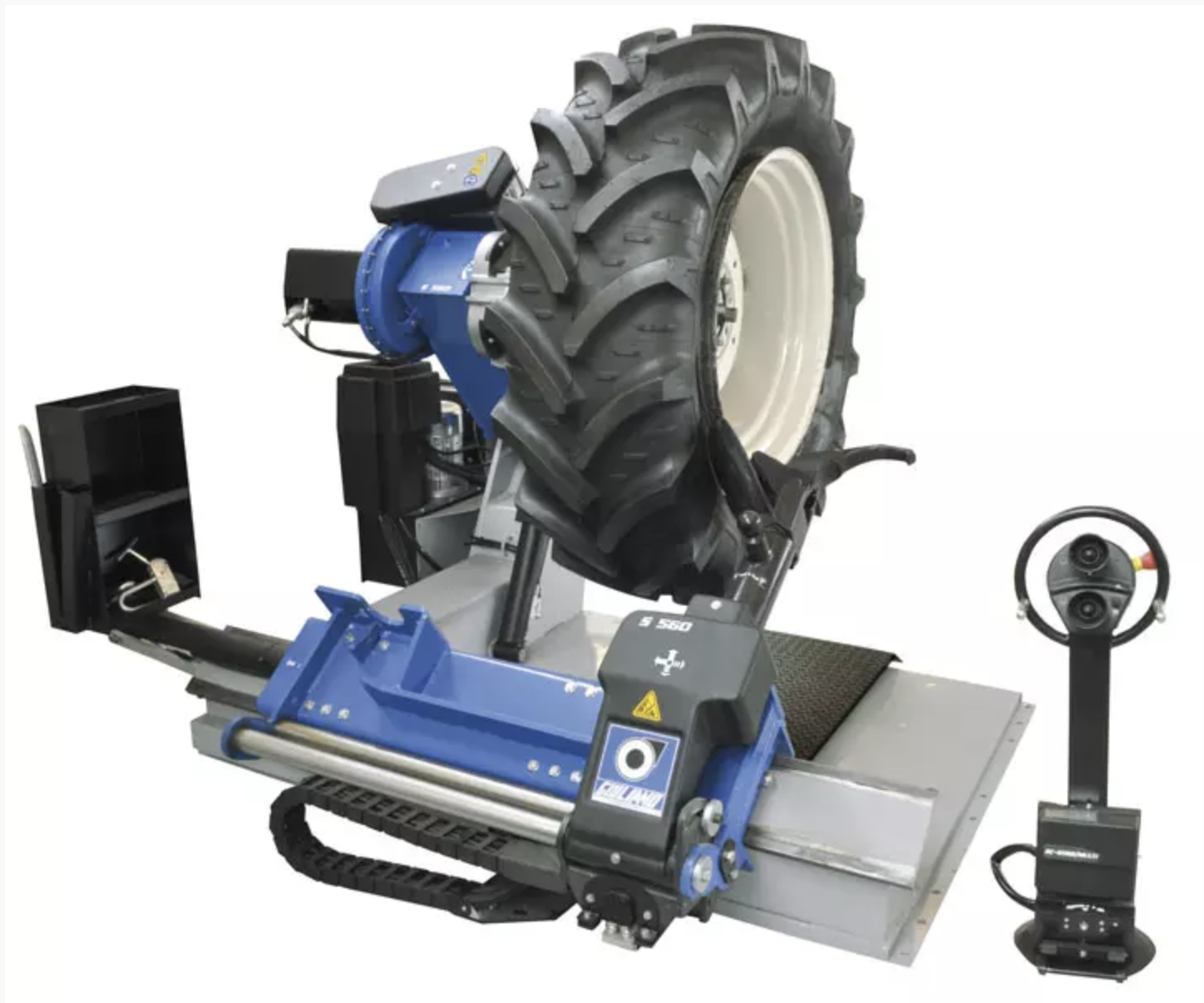

Giuliano S560

Standard Features –

Rim clamping range without extensions 14″ – 46″
Rim clamping range with extensions (optional) 14″ – 58″
Max. tyre diameter 2400 mm (94,5″)
Max. tyre width 1300 mm (51″)
Power supply 400V – 3ph / 2speed
Hydraulic pump motor power 1,5 kW
Gearbox motor power 1,8 / 2,5 kW
Operating pressure 140 bar (2031 psi)
Bead breaker force 36000N
Net weight 1025 kg
Max. tyre assembly weight 1800 kg
Max overall dimensions 2210÷2850×1840÷2050×970÷1900mm

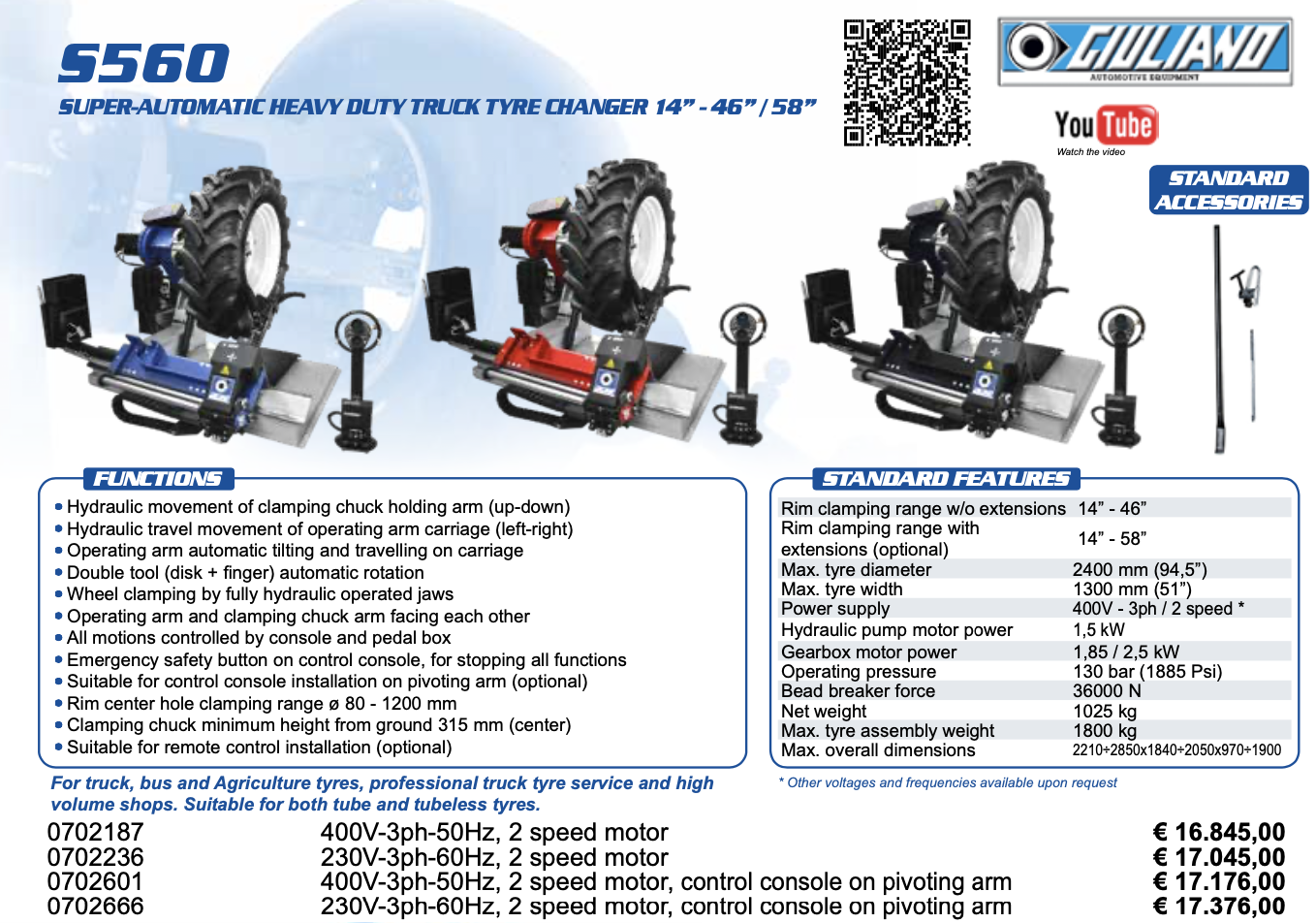

For more information please refer to the brochure here –
