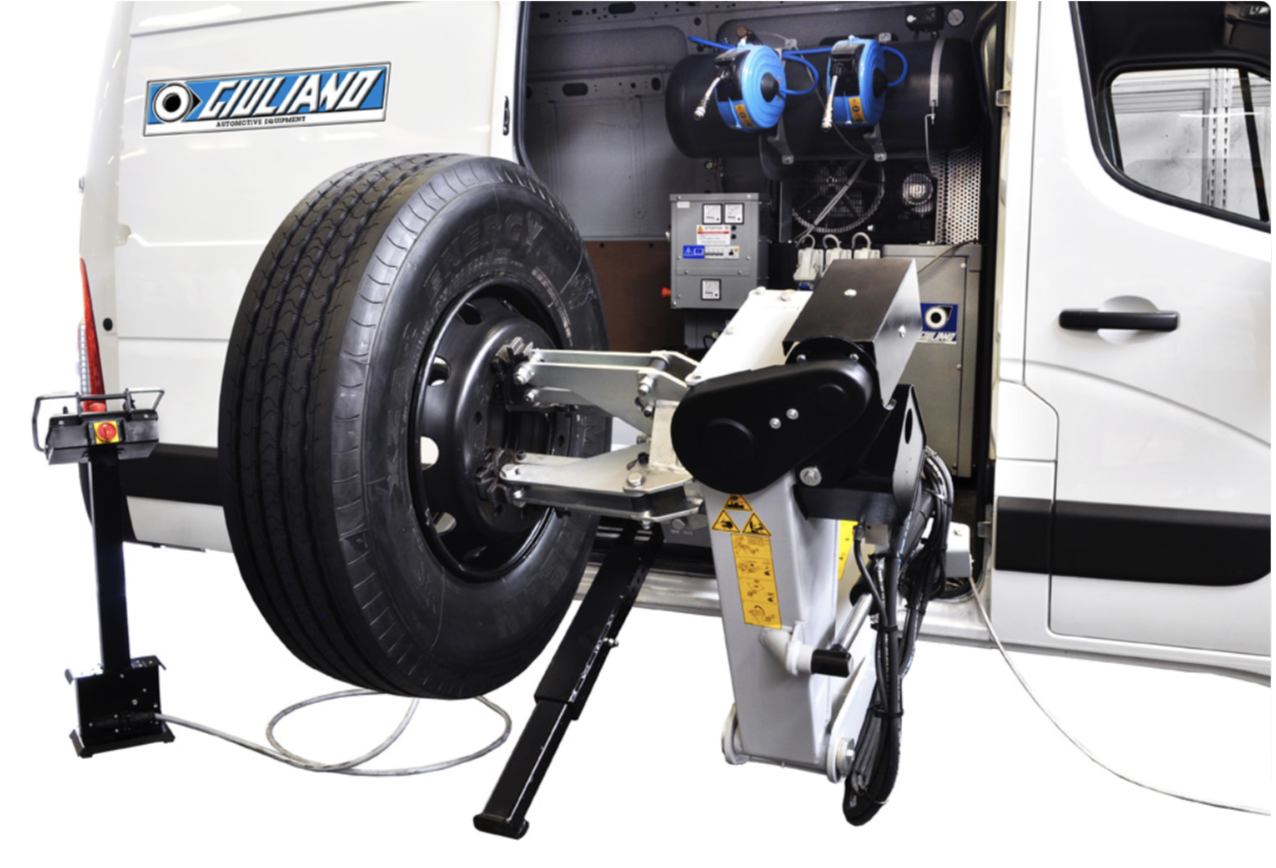

Giuliano S562

Standard Features –

Rim clamping range 13″ – 27″
Max. tyre diameter 1600 mm (63″)
Max. tyre width 870 mm (34″)
Max. tyre assembly weight 1000 Kg
Max. bead-breaker cylinder force 18760 N
Rim center hole minimum clamping diameter 80mm
Operating pressure 130 Bar (1885 Psi)
Power supply 400V – 3ph
Hydraulic pump motor 2,2 kW 400V 3ph
Gearbox motor power – Hydraulic
Net weight 543 Kg
Generator + Compressor net weight 416 Kg

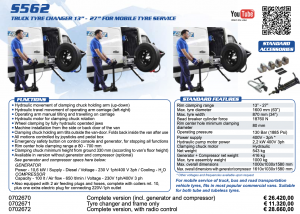

For more information please refer to the brochure here –
