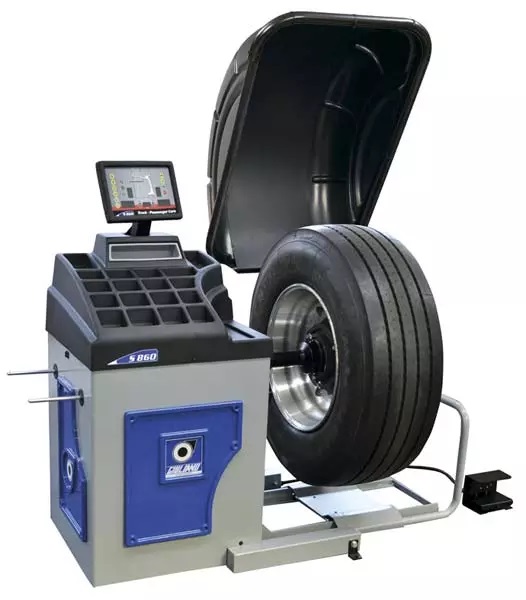

Giuliano S860

Standard features –

Max. wheel weight 250 kg
Max. wheel diameter 1300 mm
Rim diameter 10″-30″ / 255-765 mm
Rim width 1,5″-20″ / 40-510 mm
Power supply 230V 1ph (50/60) Hz
Cycle time 7s – 20s
Balancing speed car wheels < 100 rpm
Balancing speed truck wheels < 70 rpm
Balancing precision car wheels 1g
Balancing precision truck wheels 10g
Operating pressure 8-10 bar (115-145 PSI)
Net weight 230 kg
Net weight with guard 270 kg
Max. overall dimensions 2000x815x1460÷2193 mm

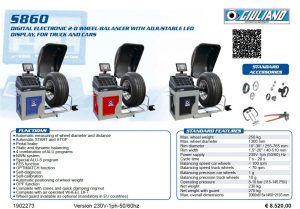

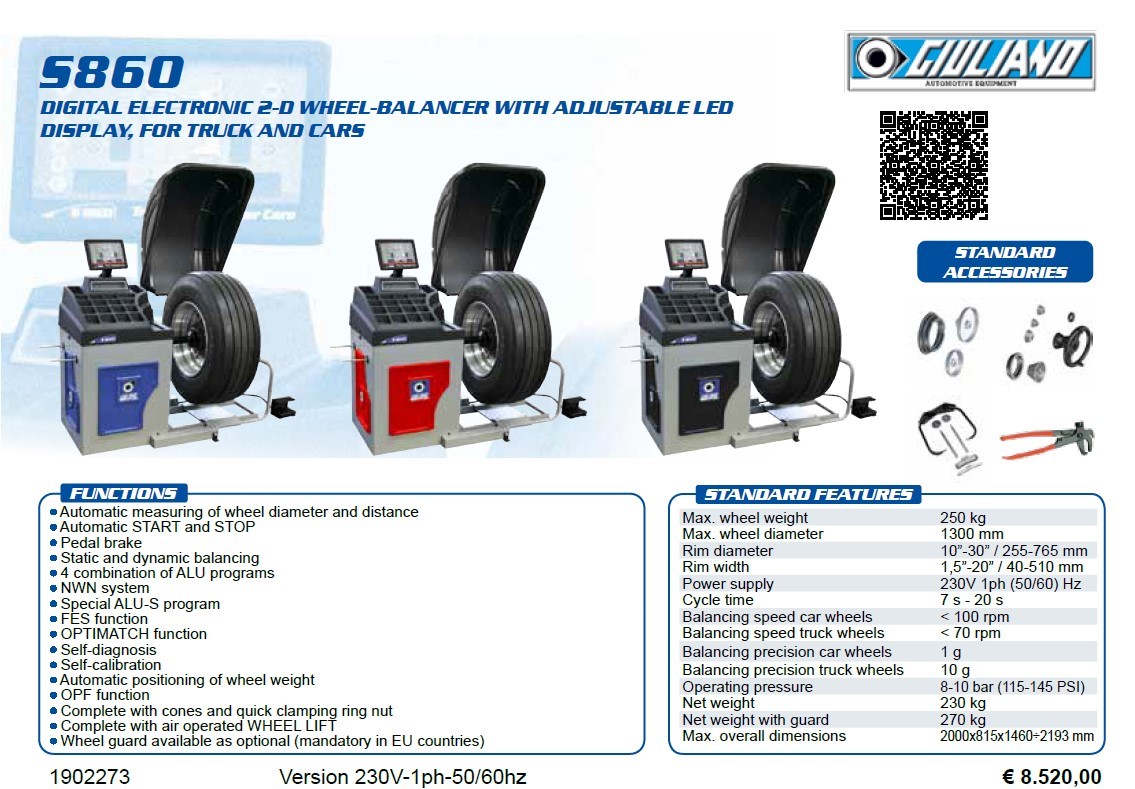

For more information please refer to the brochure here –
