Giuliano SL11

Standard features –



External clamping range 10″ – 22″ By adjustable jaws
Internal clamping range 12″ – 24″ By adjustable jaws
Max. tyre diameter 1010 mm (39″)
Max. tyre width 330 mm (13″)
Bead breaker cylinder force at 10 Bar – 30800 N
Operating pressure 10 bar (145 psi)
Rotating speed 7 rpm
Power supply 400V – 3ph / 220V – 1ph
Motor power 0,55 kW (3 ph)
Air Inflation Pressure 3,5 bar (50 Psi)
Net weight 185 Kg
Dimensions (WxDxH) 1240 x 1060 x 1760 mm

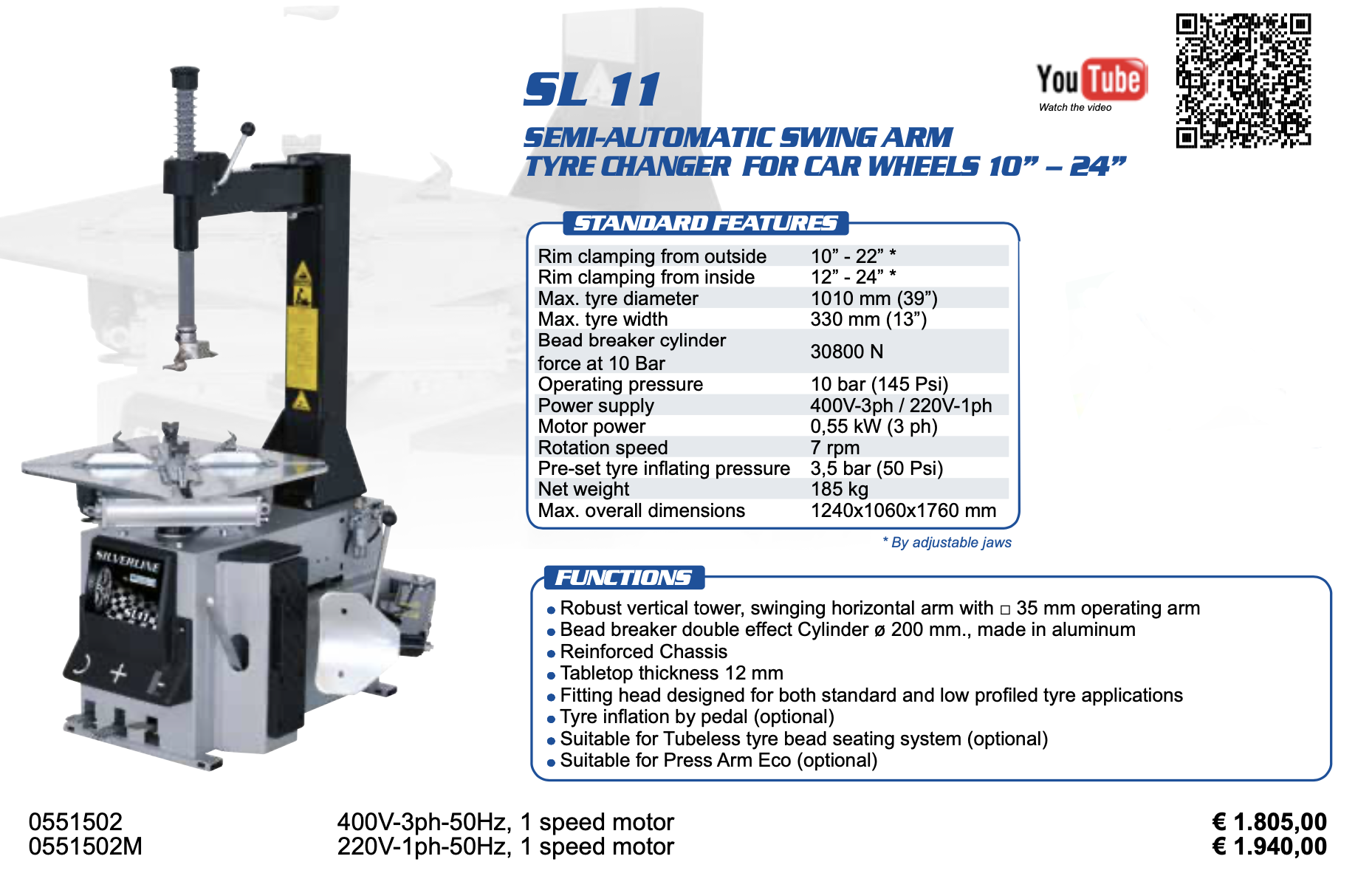

For more information please refer to the brochure here –
