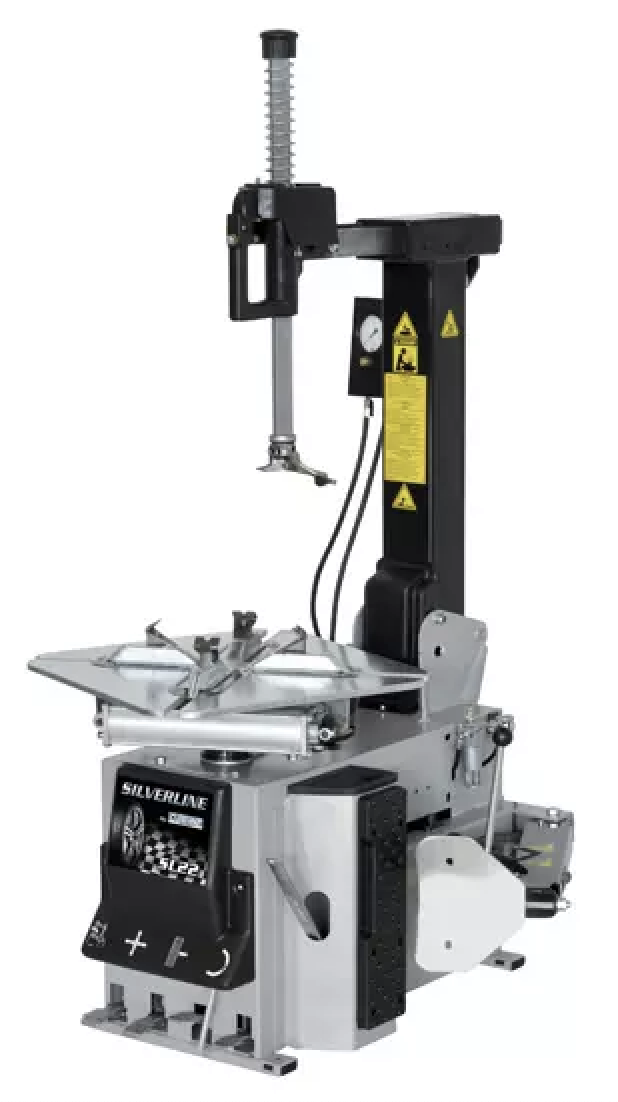

Giuliano SL22

Standard Features –

External clamping range 10″ – 22″ By adjustable jaws
Internal clamping range 12″ – 24″ By adjustable jaws
Max. tyre diameter 1010 mm (39″)
Max. tyre width 390 mm (15″)
Bead breaker force 30800 N
Operating pressure 10 bar (145 psi)
Rotating speed 7 rpm
Power supply 400V – 3ph / 220V – 1ph
Motor power 0,55 kW
Air Inflation Pressure 3,5 bar (50 Psi)
Net weight 200 Kg
Max overall dimensions 1240 x 1740 x 2010 mm

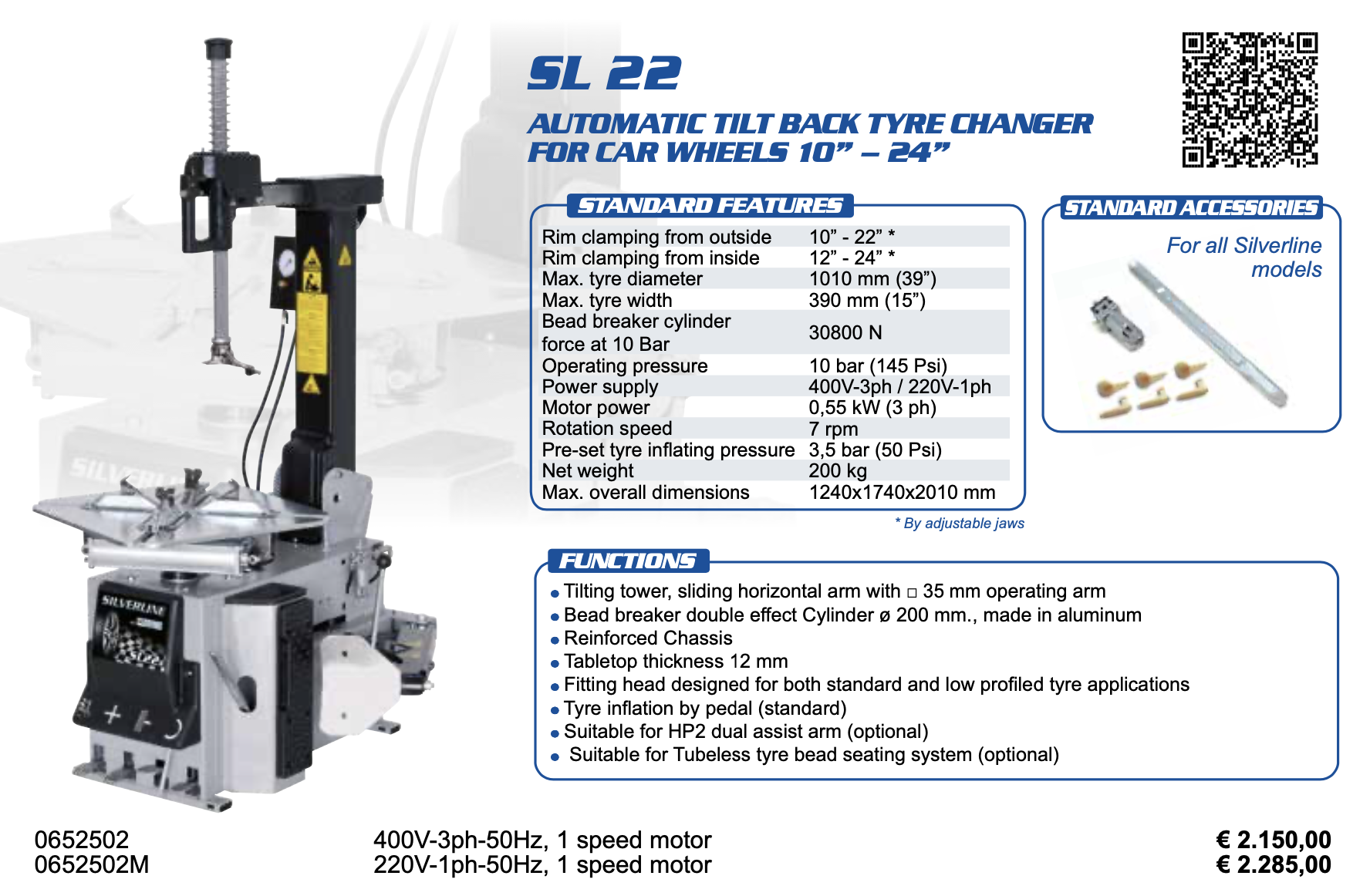

For more information please refer to the brochure here –
